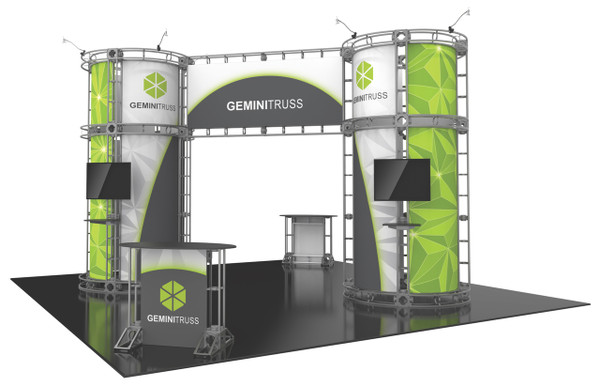

Orbital Express Truss™ features over 40 professionally designed “off-the-shelf” kits for a variety of booth sizes and configurations. Each kit comes complete with all the parts, fixtures and fittings you need to create a successful exhibit, including (depending on the kit) low voltage spotlights and adjustable tabletops. A benefit to this versatile system is that it enables you to reconfigure kits in multiple ways and combinations using the same parts. Orbital Express Truss can also be easily customized!

*Counters are included

Features and Benefits:

• - 20’ x 20’ kit size
• - Custom appearance
• - Tooless assembly
• - Simple twist and lock design
• - 5 year warranty against manufacturer defects

Kit Includes:

• 24 x 6-way junction boxes
• 4 x 24” straight truss lengths
• 4 x 30” straight truss lengths
• 16 x 36” straight truss lengths
• 12 x 46” straight truss lengths
• 24 x 90º curved truss lengths
• full set of quicklock connectors
• 4 x junction bases
• 4 x tabletops
• 2 x counters
• 8 x 50 watt spotlights
• 4 x monitor mounts

Dimensions
HARDWARE: Fits in a 20’ x 20’ space

GRAPHIC - Total finished size:
Panels GE1-A,GE1-B, GE3-A, GE3-B,GE5-A, GE5-B, GE7-A & GE-7B,: 39.5”w x 37.75”h
Panels GE2-A, GE2-B, GE4-A, GE4-B, GE6-A, GE6-B, GE8-A & GE8-B: 39.5”w x 83.75”h
Panels GE1-C & GE1-D: 93.75”w x 37.75”h
Panels GE2-C & GE2-D: 25.75”w x 36.125”h

*All dimensions available in millimeters
Please be sure to include a 2” bleed around perimeter.
Refer to related graphic template for specific information on sizes and bleeds. Dye-sublimated graphic require different bleed than UV.

Additional Information
- Graphic materials: Dye sublimated or UV panels
- Lumina 1, 50 watt spotlight
- Counter: max weight = 35 lbs / 15.88 kgs
- Tabletops (each): max weight = 25 lbs / 11.34 kgs
- Monitor mount holds 26"- 40"monitor; maximum weight = 80 lbs / 36 kgs

*Kit does not include monitors
