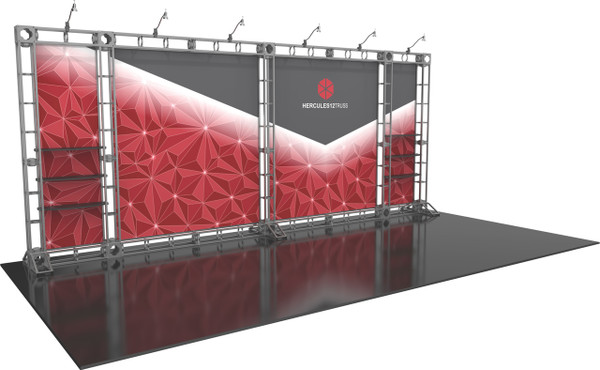

The Hercules line of Orbital Express Truss™ features basic backwalls and kits in a variety of sizes to suit a range of space needs. A benefit to this versatile system is that it enables you to reconfigure kits in multiple ways and combinations
using the same parts. Simply add or detract from any Hercules kit to create a new appearance for every event or tradeshow!

Features and Benefits:

• - 10’ x 20’ kit size
• - Custom appearance
• - Tooless assembly
• - Simple twist and lock design
• - 5 year warranty against manufacturer defects

Kit Includes:
• 7 x 6-way junction boxes
• 4 x 24” straight truss lengths
• 13 x 36” straight truss lengths
• 5 x 46” straight truss lengths
• 3 x junction base A
• 1 x full set of quicklock connectors
• 6 x 24” internal shelves
• 6 x 50 watt spotlights
• 1 x OCF2 molded case
• 1 x OCH2 molded case

Dimensions
HARDWARE: Fits in a 10’ x 20’ space

GRAPHIC Total finished size:
Panel FX1 : 47.75”w x 83.75”h
Panels FX2, FX4 & FX5 : 37.75”w x 83.75”h
Panels FX3 : 93.75”w x 83.75”h

*All dimensions available in millimeters
Please be sure to include a 2” bleed around perimeter.
Refer to related graphic template for specific information on sizes and bleeds. Dye-sublimated graphic require different bleed than UV.

Additional Information
- Graphic materials: Dye sublimated or UV panels
- Lumina 1, 50 watt spotlight
- Shelves (each): max weight = 25 lbs / 11.34 kgs
