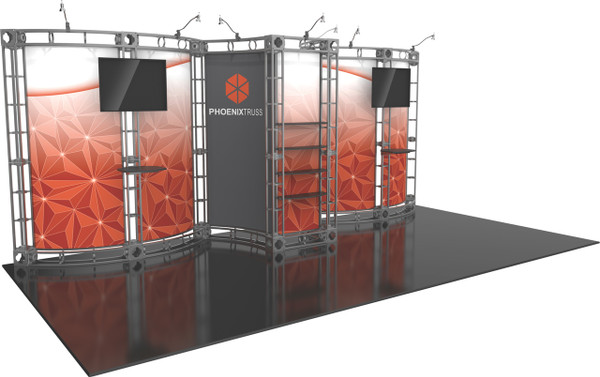

The Planetary line of Orbital Express Truss™ features over 40 professionally designed “off-the-shelf” kits for a variety of booth sizes and configurations. Each kit comes complete with all the parts, fixtures and fittings you need to create a successful exhibit, including (depending on the kit) low voltage spotlights and adjustable tabletops. A benefit to this versatile system is that it enables you to reconfigure kits in multiple ways and combinations using the same parts. Orbital Express Truss can also be easily customized!

Features and Benefits:

• - 10’ x 20’ kit size
• - Custom appearance
• - Tooless assembly
• - Simple twist and lock design
• - 5 year warranty against manufacturer defects

Kit Includes:
• 16 x 6-way junction boxes
• 2 x 24” straight truss lengths
• 8 x 36” straight truss lengths
• 8 x 46” straight truss lengths
• 12 x 45° curved truss lengths
• full set of quicklock connectors
• 2 x adjustable tabletops
• 4 x adjustable shelves
• 7 x 50 watt spotlights
• 3 x OCF molded cases

Dimensions
HARDWARE: Fits in a 10’ x 20’ space

GRAPHIC
Panels PX1, PX2, PX6 & PX7:
Total visual area: 38.125”w x 83.75”h
Panels PX3 & PX5:
Total visual area: 43”w x 83.75”h
Panels PX4:
Total visual area: 25.75”w x 83.75”h

*All dimensions available in millimeters
Please be sure to include a 2” bleed around perimeter.
Refer to related graphic template for specific information on sizes and bleeds. Dye-sublimated graphic require different bleed than UV.

Additional Information
- Graphic materials: Dye sublimated or UV panels
- Lumina 1, 50 watt spotlight
- Tabletops (each): max weight = 25 lbs / 11.34 kgs
- Shelves (each): max weight = 25 lbs / 11.34 kgs

*Kit does not include monitor or monitor mount
