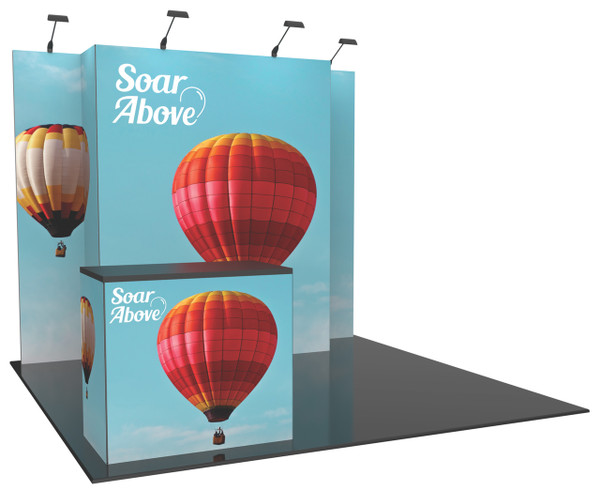

Vector Frame Essential Kit 04 - (VF-K-04)
Stand apart from the competition with a clean, sophisticated 10’ x 10’ or 10’ x 20’ Vector FrameTM exhibit kit. These graphic mural kits feature square-corner 50mm extrusion frames and push-fit fabric graphics that cover the entire frame. Vector Frame Essential kits are easy to assemble and disassemble.

Production Time is 5-7 business days after proof approval. (Does not include shipping time)

Design Templates:

Product Specs Sheet (PDF)

Downloadable Design template(PDF)

Downloadable Counter Design template(PDF)

Features and benefits:
- 50mm silver extrusion frame
- Single-sided SEG dye-sublimated push-fit fabric graphics
- Easy step-by-step instructions

This Kit Includes:
- Kit includes frame, five fabric graphics, four 120 watt floodlights, one fabric graphic counter, two wheeled molded cases - Lifetime hardware warranty against
manufacturer defects

Counter holds max weight 100 lbs / 45.4 kg
Tabletop Colors: Silver, Black, Mahogany, Natural
Lights Included: Lumina 200 120 watt
floodlight, curved arm, black finish, 19.5” from end to end

Dimensions:

Hardware - Assembled unit:
114.65”w x 94.5”h x 22”d approx. 2912.11mm(w) x 2400.3mm(h) x 558.8mm(d)
Counter:
39.37”w x 36.61”h x 22.44”d approx. 999.998mm(w) x 929.894mm(h) x 569.976mm(d)

Graphic - Total visual area:
Total visual area:
Panels A & E: 19.56”w x 94.375”h 497mm(w) x 2397mm(h)
Panels B & D: 19.76”w x 94.375”h 502mm(w) x 2397mm(h)
Panel C: 74.67”w x 94.375”h 1897mm(w) x 2397mm(h)
Counter panels A & C: 39.24”w x 35.31”h 997mm(w) x 897mm(h)
Counter panels B, D: 21.52”w x 35.31”h 547mm(w) x 897mm(h)
Please be sure to include a 2” bleed around the perimeter.
Refer to related graphic templates for more information

Shipping dimensions - ships in 2 cases: 1 OCH2 case: 52”l x 30”w x 15”h 1320.8mm(l) x 762mm(w) x 381mm(h)
1 OCE case: 40”l up to 60”l x 18”w x 18”h 1016mm up to 1524mm(l) x 457.2mm(w) x 457.2mm(h)
Approximate shipping weight (entire kit): 148.66 lbs / 67.4 kgs
